ACE-IVR 03-04 : NTC / Battery light adaptor

£ 10.00 inc VAT | 12.40 inc VAT | $ 12.74

Product Images (Click to enlarge)
This adaptor replaces the bulb in either a motorcycle low fuel level adaptor or the battery light on a BMW Boxer to allow an LED to be used to show the low fuel or battery warning instead.

The adaptor can also be connected to an Acewell fuel gauge in RES mode to display low fuel on the LCD.
2 versions are available

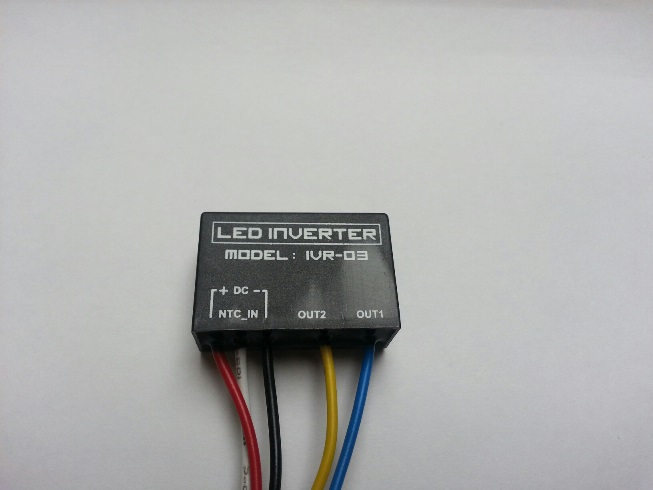

IVR-03 has 2 outputs - one pulls +ve and the other -ve when the bulb would normally illuminated

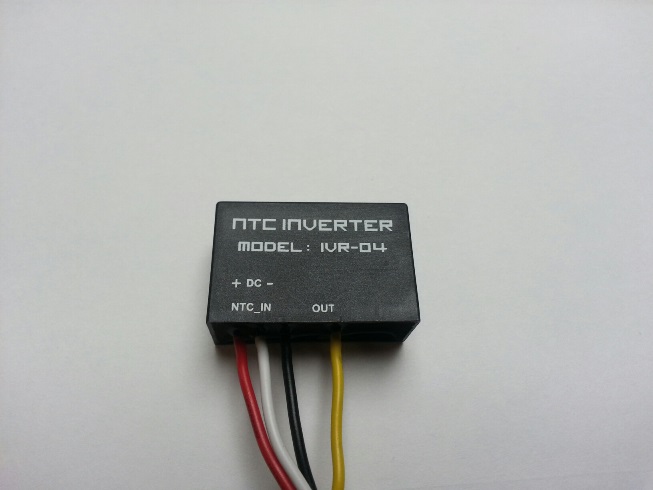

IVR-04 has 1 output which pulls -ve when the bulb would normally be illuminated.
To connect to a RES mode fuel gauge you connect -ve
If using one of the LEDs then check if it needs to pull +ve or -ve on the wiring diagram for the LED.

Red cable Ignition live (Switched +ve)
Black cable -ve vehicle ground
White cable Wire from NTC reserve sensor or alternator (BMW warning lamp)
Blue cable When reserve / battery light is on, positive (+) output 1 (IVR03 only)
Yellow cable When reserve / battery light is on, minus (-) output 2
Product Images
(Click to enlarge)

Category Acewell Accessories and Sensors
Sub-Category Electronic Adaptors
Quantity in Stock 999999

Buy This Product
Base Price
£ 10.00 inc VAT
Number of inputs and outputs
