MA85 : 85mm diameter analogue and digital gauge

£ 190.00 inc VAT | 235.60 inc VAT | $ 242.24

Product Images (Click to enlarge)

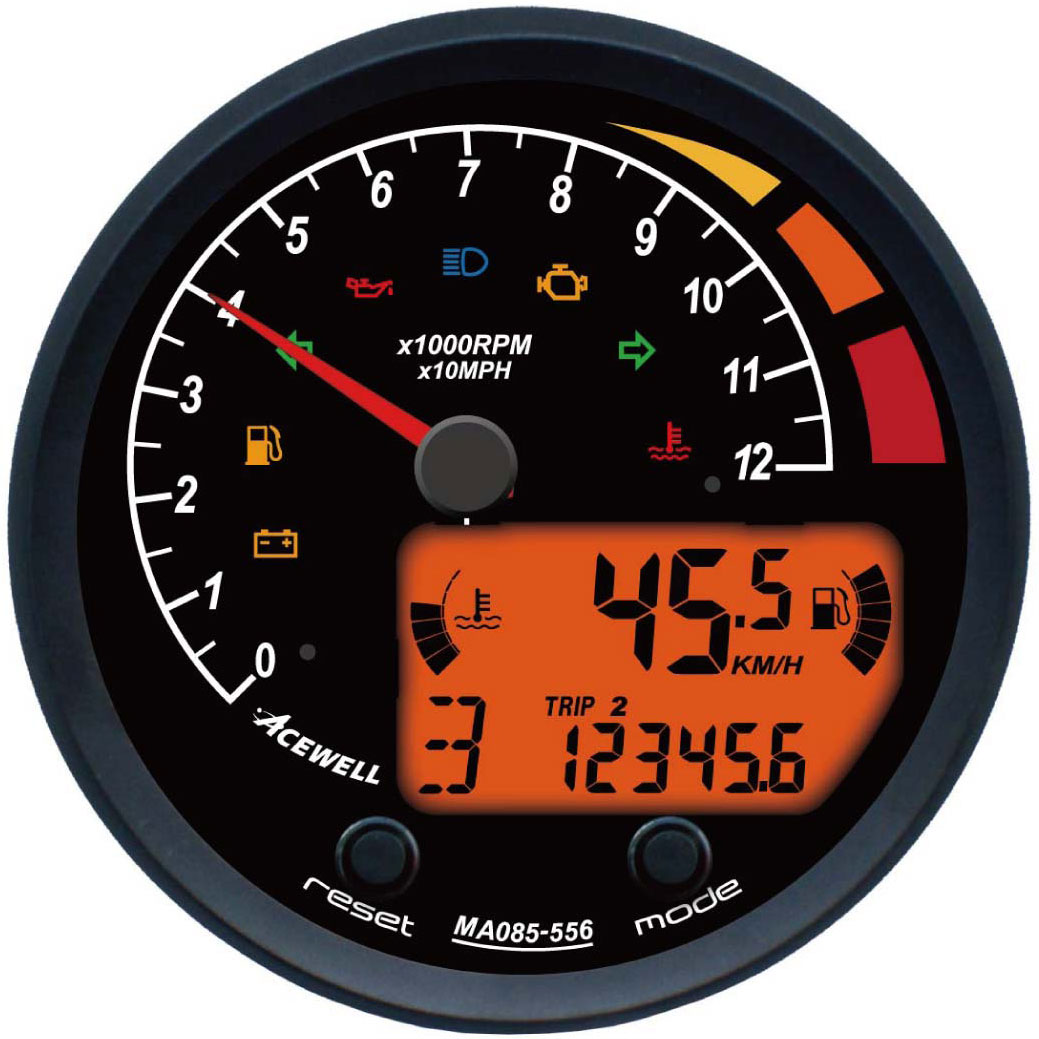

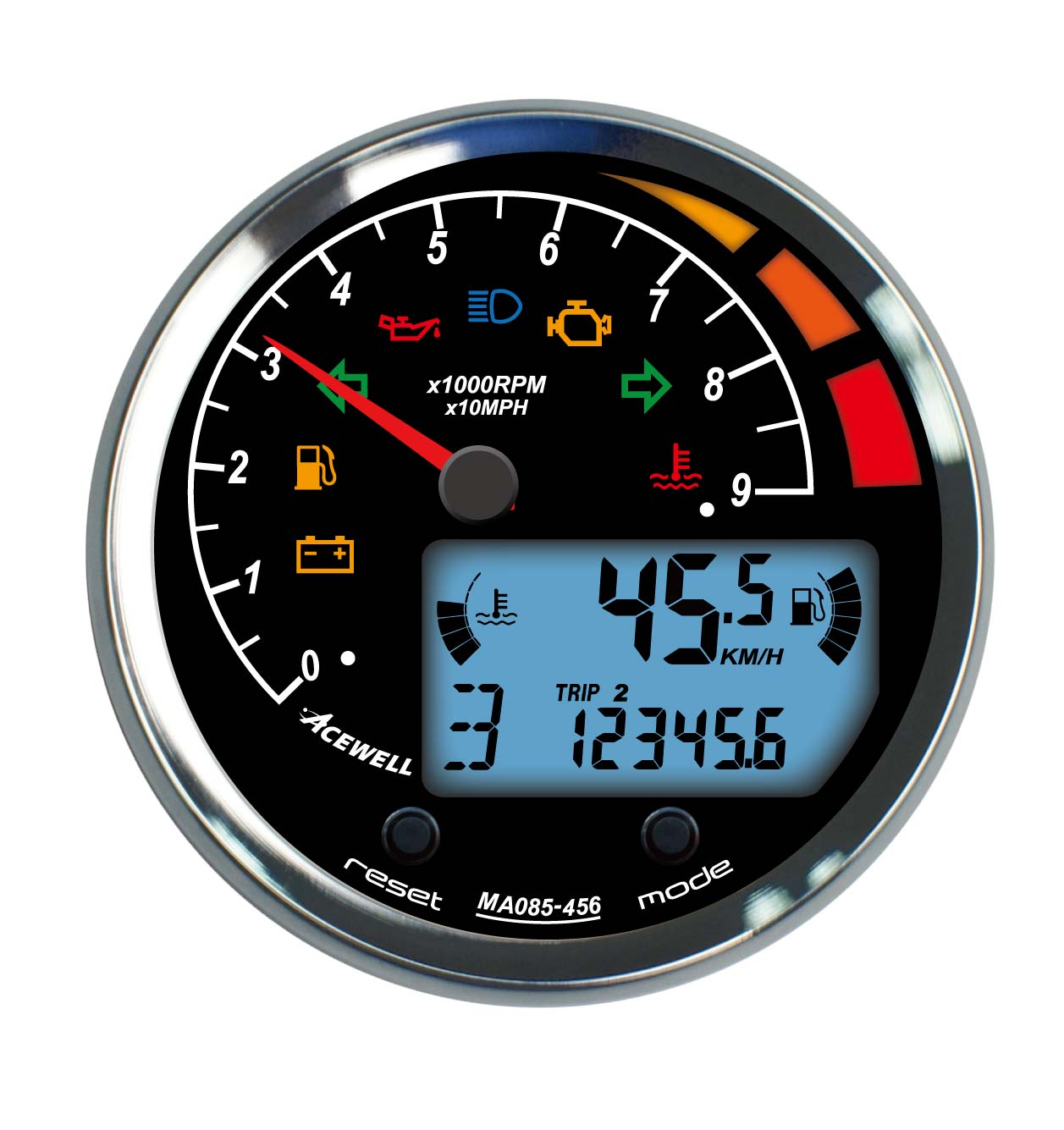

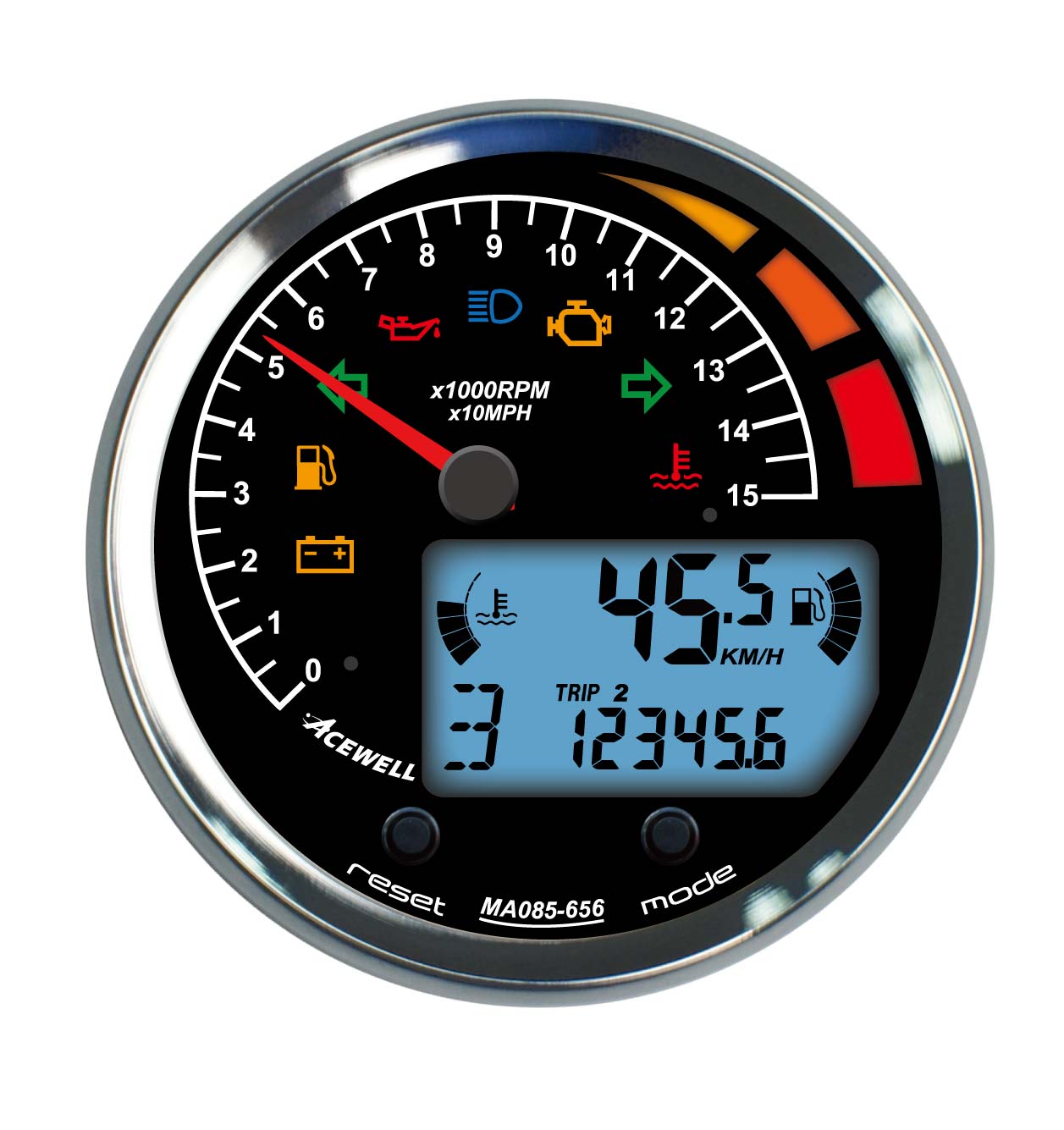

ACEWELL ACE-MA85 Digital Dashboard


  • Simultaneously displays tachometer, speedometer, fuel gauge and bar-graph temperature meter, gear indicator as well as one other digital readout.

  • Backlight can be switched with sidelights as per IVA / MSVA / MOT requirements

  • Warning lamps meet requirements of IVA / MSVA / MOT test

  • Needle tachometer available in 4 RPM ranges.

  • Needle can be switched between showing speed and RPM

  • Compatible with both car and motorcycle engined vehicles

  • Speed input can connect to included magnet/reed switch sensor or optional cable drive adaptor or directly to many speed sensors fitted to automotive gearboxes

  • Gear indicator calculates gear by comparing speed and RPM on manual gearboxes, so no additional sensors are required

  • 100% water resistant so can be fitted in beach buggies without worrying about rain damage

  • Includes RPM sensing wire, speed sensor, temperature sensor, and generic wiring harness

  • Voltage warning lamp can be configured for the voltages to come on and off to suit any vehicle

  • Programmable Fuel Gauge which can be set for 10-990 ohms resistance for both full and empty so that it can connect to almost any sender.

  • E-Marked for road vehicle use within Europe

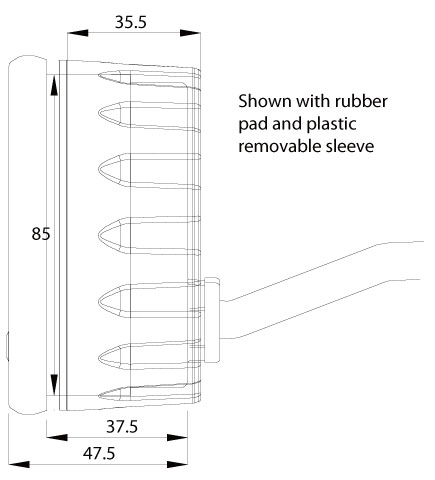

  • 85mm diameter main body x 65mm deep with 95mm diameter bezel and 95mm diameter sleeve

  • Top bezel available in chromed plastic / Black CNC Aluminium / Chromed CNC Aluminium

  • Screw on Sleeve available in black plastic / Black CNC Aluminium / Chromed CNC Aluminium

  • Screw on Sleeve to clamp speedometer through a panel with 85mm hole
  • Needle can show RPM or speed in MPH

  • Upper line of LCD shows speed in MPH only - there is no KM/H function

  • Screw on Sleeve to clamp speedometer through a panel with 85mm hole
    Each kit Includes:
    • 1 x Computer

    • 1 x Speed sensor (and ACE-M magnet for reed switches)

    • 1 x ACE-PT1/8 Temperature sensor 1/8 NPT which can be used for water or oil temp.

    • 1 x Set of cables & fitting instructions.

  • Product Images
    (Click to enlarge)

    Category Acewell Speedometers
    Sub-Category ACE-85mm
    Quantity in Stock 10

    Buy This Product
    Base Price
    £ 190.00 inc VAT
    Front ring - Bezel
    Remote Control
    Speed Sensor
    Temperature Sensor
