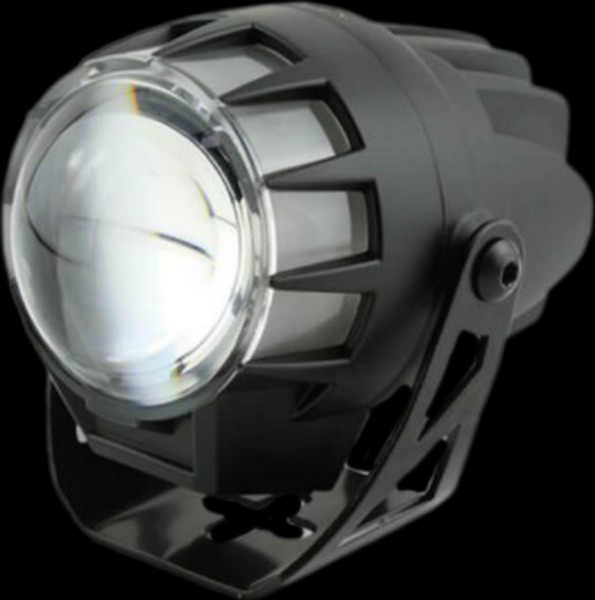

DUAL STREAM : Highsider LED Main and Dip Beam 45mm Projector Headlight

This Highsider Dual-Stream LED motorbike projector has both dip AND main beams, it comes with a shuttered 45mm dual beam lens (under 2") is in a black aluminium housing with u shaped mounting bracket, it is E-approved and with having a symmetric dip beam it is suitable worldwide RHD or LHD situations.

Dip, Main and side light in one projector unit.

Ideal for mounting in a number board for flat track etc..

The small all-in-one ellipsoid headlight with round lens is a powerful LED main headlight in a black housing and a sturdy holder. The special feature of the DUAL-STREAM is the parking light ring around the ellipsoid lens and the shutter technology, with a mechanical aperture to switch from high beam to low beam. By using this modern LED technology, the smallest housing dimensions can be realized with the greatest possible light output at the same time.

Our highlights – give your bike its unique style! The exceptional design and the perfect technology of the HIGHSIDER headlight series makes you absolutely to a highlight!

Dimensions:
Diameter of lens: approx. 45 mm
Height: 70.2 mm
Width: 67 mm
Depth: 96.5 mm
Distance between mounting holes: 67 mm
Mounting holes on the side: M5 mm
Material housing: aluminum
Weight: 0.230 kg
Power consumption:
12V / 12W, 739.3 lm, passing beam
12V / 19W, 739.3 lm, driving beam
Cable assignment:
Low beam = white (+)
High beam = blue (+)
Position light = brown (+)
Earth (Ground) = black (-)
Delivery contents: 1 piece
